Weather and ADS-B Traffic
This applies to a series of non certfied or newly certified (G3X) devices. The important difference
compared to the GTN650/750/G1000/G3000 is that an ADS-B in box is still required, but
they are compatible with the much lower cost GDL30, GDL50, GDL52 product line compared to the
expensive GTX345 etc.
Displays:
Garmin
G3X (and variants)
Aera 795 (and variants)
GPSMAP 695 (and variants)
To provide a wireless interconnect the ADL140/150(B)/190/200 can be combined with the
ADLS1G extension box. The ADL190 (serial #1400 and up) and ADL180B provide this
interface on board, so do not require the ADLS1G.
This requires a separate receiver or a compatible transponder. Usual choices are:
GDL39(R/3D), GDL50/52, GTX345(R), GTX45R, GNX375

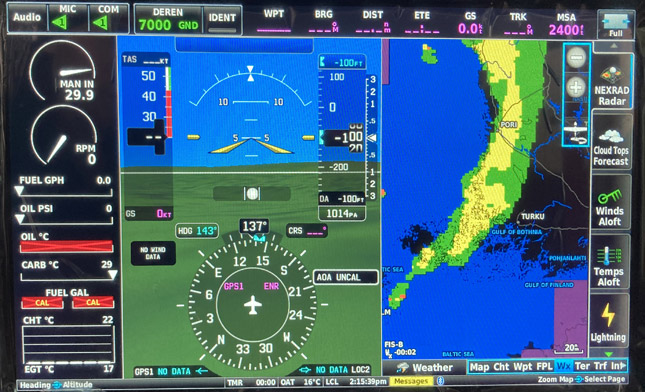

G3X Displaying Weather
