The system is designed to transmit all data types at least once every 5 minutes. After power up, you should receive a full set of data about 5 minutes after the internet connection is established by the Starlink Mini.

Weather Products

Product	Update Interval	Coverage
Radar Regional	15 minutes	Approximately the size of France around your position
Radar Continental	15 minutes	Wide area covering most of Western Europe
Cloud Tops	15 minutes	Similar to regional radar, up to FL245
Lightning	10 minutes	Similar to regional radar
Icing Forecast	Periodic	Multiple layers up to FL245
Turbulence Forecast	Periodic	Multiple layers up to FL245
METAR	As published	All reporting airports in wide area
TAF	As published	All reporting airports in wide area
Winds & Temperatures	Periodic	Many airports in your area

Notes on Specific Products

Radar: avionics typically merge regional (high-res, local) and continental (low-res, wide) into one display.
Cloud Tops: derived from satellite imagery + GFS temperatures; colored by altitude up to FL245.
Icing / Turbulence: GFS-based predictions at multiple layers up to FL245.
METAR / TAF: all reporting airports in a wide area around your position, including adjacent countries.
Winds & Temperatures: many airports in your area. Note: some avionics only handle US waypoints — apps like Garmin Pilot work worldwide.

What Can Your Avionics Display?

The data you can see depends on your avionics capabilities:

Older avionics (legacy G1000, G500, GPS695 etc.): Usually radar, METAR, TAF

G1000 / G1000 NXi: Radar, METAR, TAF (no cloud tops or lightning due to Garmin limitation)

G3X, GTN750 etc.: Usually all data products

Please check your specific avionics documentation for supported weather products.

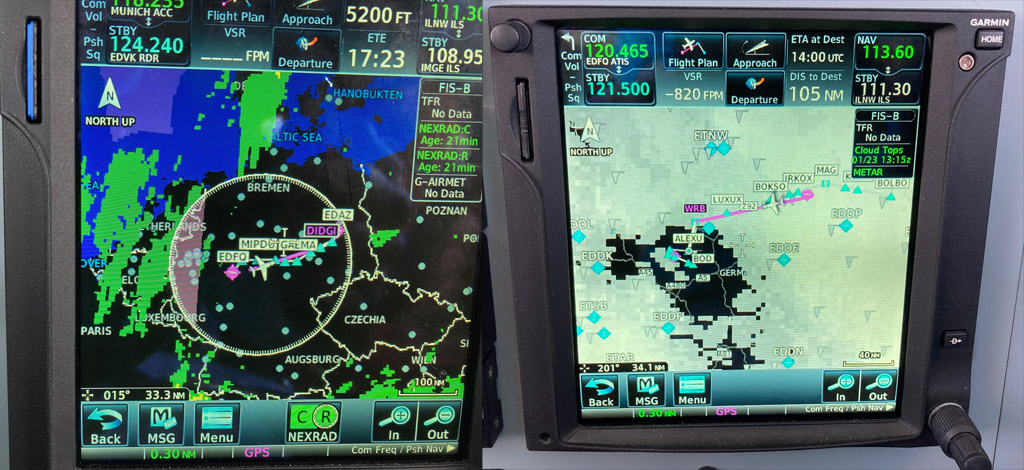

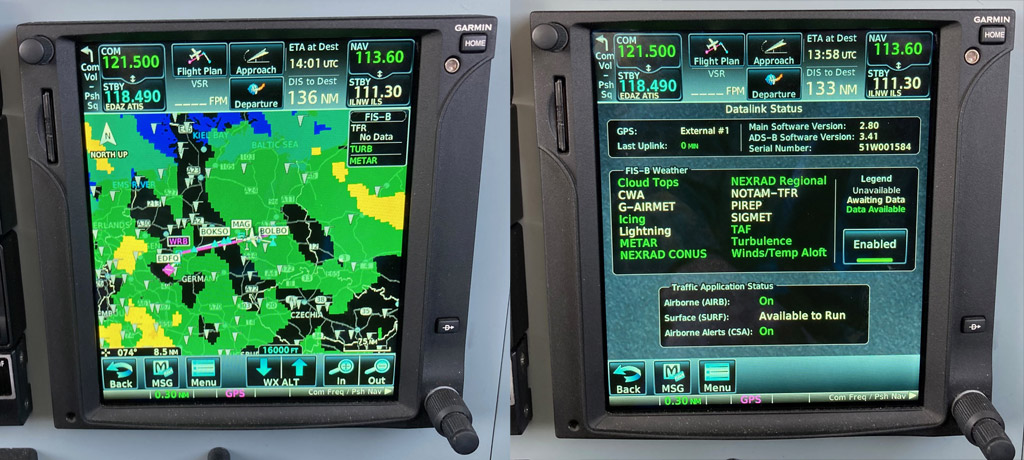

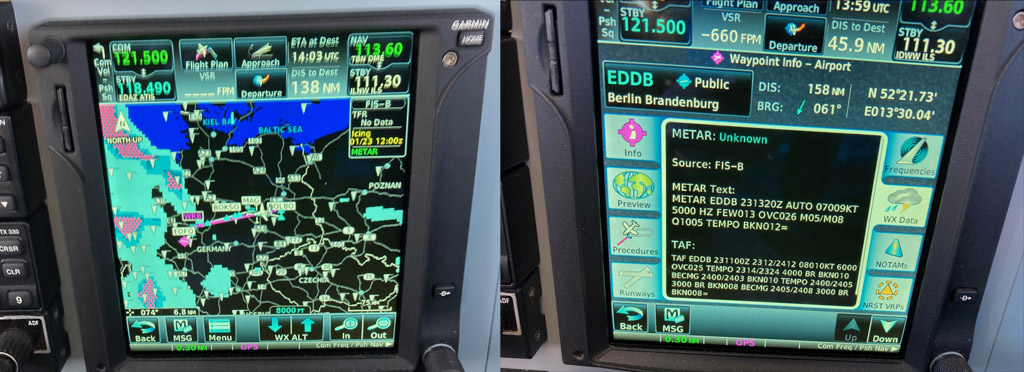

GTN750 Screenshots

These screenshots show weather data on a Garmin GTN750 received via WXStar:

See Avionics Interconnect Options »

The producer of the WXStar DIY Kit is WXStar UG (haftungsbeschränkt), Berlin, Germany. Golze Engineering is a dealer for this product.
