Weather and ADS-B Traffic
This applies to all avionics systems which are able to receive
and display ADSB FIS-B weather. The displays listed below require an additional
external box to actually receive the weather and traffic data.
A simple wired connection will not work.
Garmin
GTN650 / GTN750 (and Txi variants)
G500 / G600 / G1000 / G3000 (and Nxi variants)
Aspen
EFD1000/500 (and variants)
Dynon
SkyView (and variants)
To provide a wireless interconnect the ADL140/150(B)/190/200 can be combined with the
ADLS1G extension box. The ADL190 (serial #1400 and up) and ADL180B provide this
interface on board, so do not require the ADLS1G.
This solution requires a compatible transponder. supporting ADS-B in:
GTX345(R), GTX45R, SV-ADSB-470/472 (for Dynon)
Those cheaper or older transponders
will NOT work:
GTX330, GTX330ES, GTX327, GTX335, GTX33R, GTX35R
Flight Plan Transfer
Besides displaying the weather data most of the systems listed above can also
send the currently active flight plan to the wired ADL device. This is done
using a direct wire connection. But please not that test showed the G1000
with its GIA63(W) box unfortunately does not supply this flight plan information.
The transmitted flight plan will also contain IFR procedures like
arrivals etc.

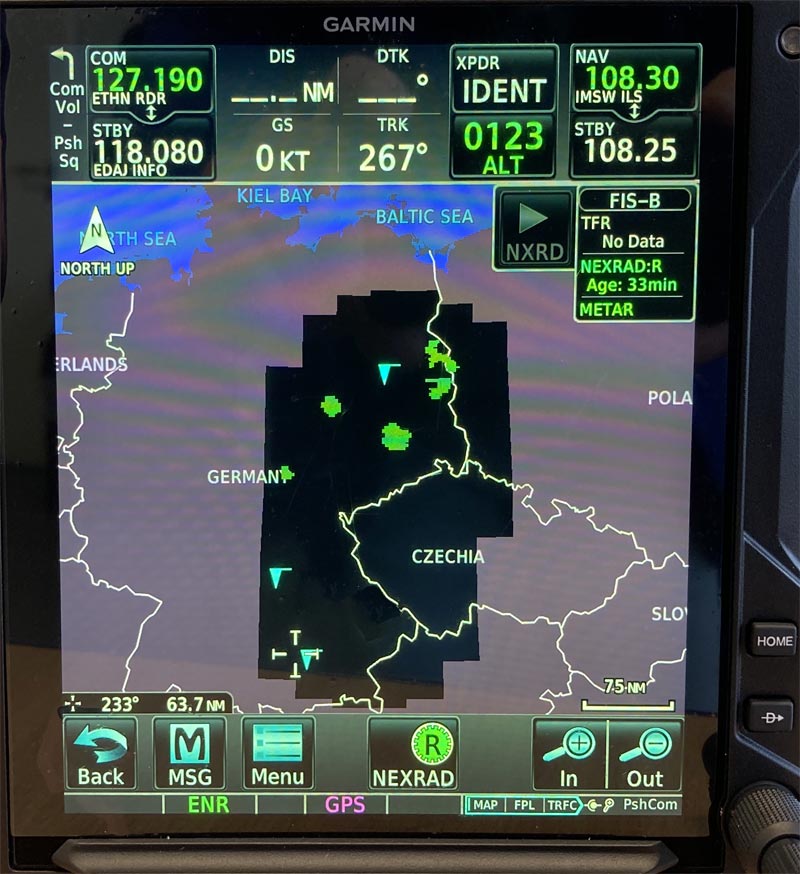

GTN750 Displaying Weather
